ABS

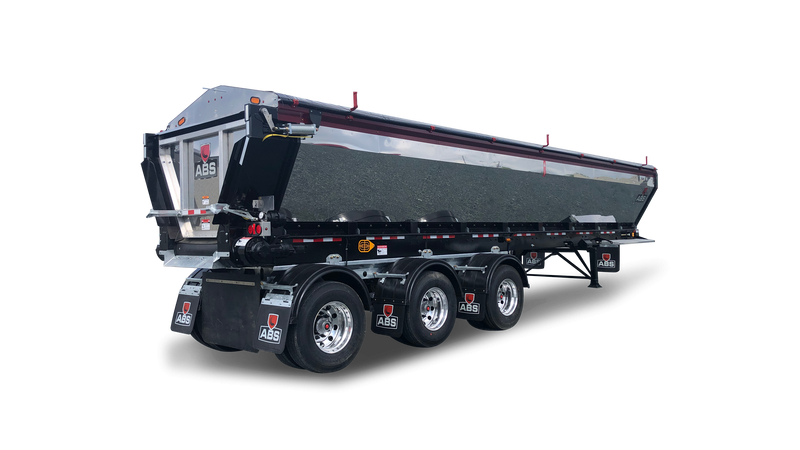

Belt Trailer ABS WC
Standard features
Optional features
Lighting
Various options for exterior light packages
Exterior Panels
Stainless steel side, front and rear (sheets)
Axle Configurations
Configurations up to 5 axles including standard and steerable lift axles
Specifications
Dimensions
Length
30'-50'
Width
102'' / 2,59m.
Coupler Height
48,5"
King Pin
16"
Height
123" to 141"
Capacity
35 yd³ to 74 yd³
Sub Structure
Frame
STRENX XF, 110,000 psi steel; Fully hot dip galvanized
Body Structure
Coupler Plate
5/16 STRENX XF 110,000 psi steel, with convex shape at king pin
Top Rail
STRENX XF, 110,000 psi steel
Web
STRENX XF, 110,000 psi steel
Crossmembers
Bolted I-beams
Fenders
Plastic fenders
Front Wall
Hydraulic Coupling
Male, 1" diameter, screw type and Female, 1" diameter, screw type
Side wall
Side Panels
Aluminum 14 gauge (0.064'')
Top Rail
STRENX XF, 110,000 psi steel
Rear End
Door Locks
Air operated, two locking hooks
Insulation
Sides
Air gap between side wall and body wall
Electrical
Main System
Grote Ultra Blue LED sealed lights & wiring harness system meets Transport Canada and DOT requirements
Front Plug
7 way (SAE J560) with easy access wiring
Front Additional Plug
7 way (ISO 3731) for auxiliary functions
Back-up Lights
Optional LED shock proof lights with polycarbonate lenses
Landing Gear
Landing Gear
Holland Mark V 2 speed landing gear, driver side
Suspension
Bogie
Fully galvanized structure
Suspension
Hendrickson Intraax with ZMD
Brakes
16.5 X 7 standard, extended life lining
Wheel End
Oil or Grease
Hub & Drum
10-hole long stud
Rims
Aluminum
Tires
11R22.5 16 ply
ABS System
2S/1M
Mudflaps
Black light plastic with ABS logo
Air System
Gladhands
Fixed at front
Accessories & Finishing
Paint
Sand blast + epoxy primer + polyurethane paint, black or custom color
Decals
Conspicuity Tape Meets CMVSS & DOT Standards
Ladders
Located on driver side
